OV-33

Magnetic - screened type-O backward-wave tubes with magnetic focusing are used in microwave measuring systems.
Low steepness of electronic tuning, low spectral density of amplitude fluctuations' power, wide frequency band provide the usage of the type-O backward-wave tubes in measuring equipment as optimal devices.
Input and output - coaxial.
Cooling - without special cooling.

Image of OV-33

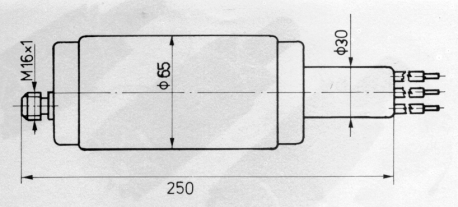

Scheme of OV-33

General characteristics
Frequency band, GHz
5,65-8,35
Output power, mW
50
Helix voltage, V
1750
Cathode current, mAV
70
Steepness of electronic frequency tuning, MHz/V
8
Spectral density of amplitude flutuations' power, dB/Hz
-150
Lifetime, h
1000
Dimensions, mm
Ø65×240
Weight, kg
1,5
