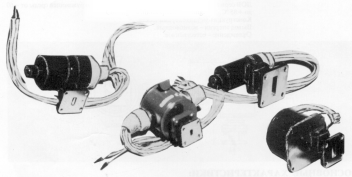

OVS-25A

Series BWOs with electronic tuning and periodic electrostatic focusing are oscillators for broad application.
Fully covering the frequency range between 9 and 40 GHz, they are suitable for RF measuring tasks and for use in physical and testing of components reqire microwave oscillators of low or medium power covering a broad tuning range, which can easily be amplitude - and frequency - modulated or swept. The type OBC BWOs ideally meets these requirements.
Operating temperature range -60... +80°C.
Construction - metal-ceramic.
Power output - waveguide.
Cooling - without special cooling.

General characteristics
Frequency range, GHz	25,95-37,50
Output power, mW	12
Output power drop, max., dB	13
Anode 1 voltage, V	200
Anode 2 voltage, V	190-250
Control electrode voltage, V	390-1850
Readiness, min.	3
Lifetime, h	1500

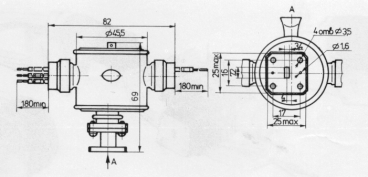

Dimensions, mm	92×69×46,5
Weight, g	450
