GMI-16R
BEAM-POWER TETRODE
The GMI-16R beam-power tetrode is used in pulse amplifiers and modulators in RF equipment

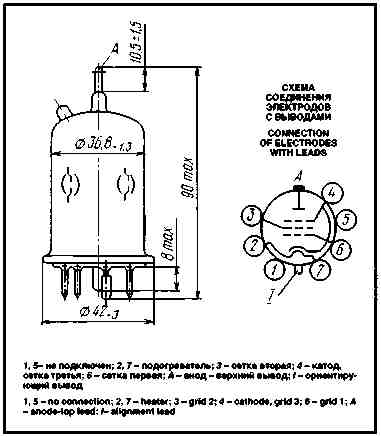

GENERAL
Cathode: indirectly heated, oxide-coated.
Envelope: glass, no-base.
Height: at most 90 mm.
Diameter: at most 42 mm.
Mass: at most 65 g
00021.jpg)
| OPERATING ENVIRONMENTAL CONDITIONS | |
| Vibration loads: | |
| frequencies, Hz | 5-600 |
| acceleration, m/s² | 98 |
| Multiple impact with acceleration, m/s² | 343 |
| Single impacts with acceleration, m/s² | 2,940 |
| Ambient temperature, °C | -60 to +125 |
| Relative humidity at +40 °C, % | 95-98 |
|
BASIC DATA Electrical Parameters |
|
| Heater voltage (AC or DC), V | 6.3 |
| Heater current, A | 1.3-1.6 |
| Anode voltage (DC), kV | 1 |
| Grid 2 voltage (DC), V | 600 |
| Grid 1 voltage (DC), V | -95 |
| Peak grid 1 excess voltage, V | 55 |
| Peak anode current, A | 3.5-4.7 |
| Peak grid 2 current, A | 0.15-0.7 |
| Peak grid 1 voltage, A | 0.2-0.6 |
| Negative grid 1 cutoff voltage, V | 60-95 |
| Warm up time, s, at most | 14 |
| Pulse duration, µs | 3 |
| Pulse frequency, Hz | 666 |
| Interelectrode capacitance, pF: | |
| input | 30-42 |
| output | 5-8 |
| transfer,at most | 0.8 |
| Limit Operating Values | |
| Heater voltage (AC or DC), V | 5.7-7 |
| Maximum speed-up heater voltage, V | 8 |
| Anode voltage (DC), kV | 4 |
| Grid 2 voltage (DC), kV | 0.9 |
| Peak grid 1 excess voltage, V | 100 |
| Grid 1 voltage, V | -200 |
| Dissipation, W: | |
| anode | 9 |
| grid 2 | 1.8 |
| grid 1 | 1 |
| Peak cathode current, A | 6 |
| Maximum pulse duration, µs | 10 |
| Bulb temperature, °C | 250 |
| Voltage between cathode and heater, V | -20 to +100 |
00031.jpg)

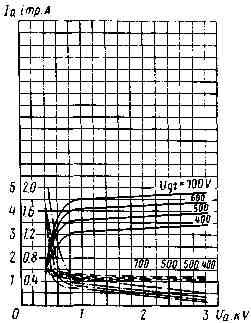

Averaged Peak Characteristic Curves:
Uf = 6.3V; Ug1 = -95V; Ug1 imp = 150V; t = 3µs; pulse frequency 666 Hz;
_____ anode current;
_ _ _ grid 1 current;
_ . _ grid 2 current
00032.jpg)

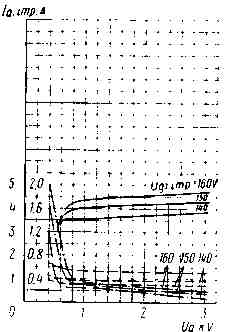

Averaged Peak Characteristic Curves:
Uf = 6.3V; Ug1 = -95V; Ug1 imp = 600V; t = 3µs; pulse frequency 666 Hz;
_____ anode current;
_ _ _ grid 1 current;
_ . _ grid 2 current
00041.jpg)

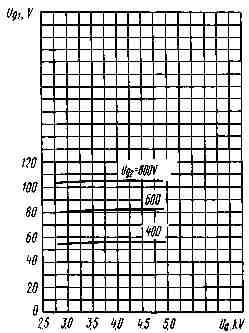

Averaged Characteristic Curves Showing Grid 1 Cutoff Voltage versus Anode Voltage:
Uf= 6.3V; Rl = 1kOm
00042.jpg)

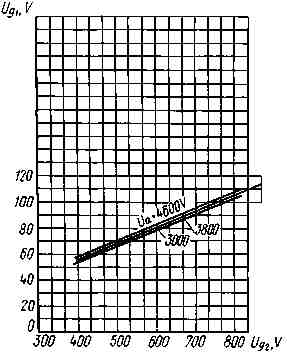

Averaged Characteristic Curves Showing Grid 1 Cutoff Voltage versus Grid 2 Voltage:
Uf= 6.3V; Rl = 1kOm
