GU-ÇÇA
TETRODE
The GU-ÇÇA tetrode is designed for continuous operation at frequencies up to 500 MHz in separate-excitation or self-excitation oscillator circuits and is suitable for use in both stationary and mobile RF equipment

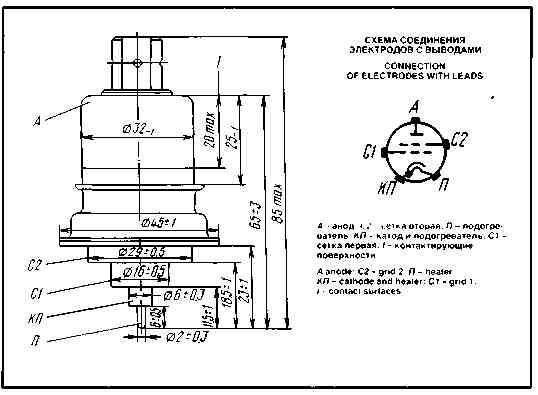

GENERAL
Cathode: indirectly heated, oxide-coated.
Envelope: glass-to-metal.
Cooling: liquid.
Height: at most 85 mm.
Diameter: at most 45 mm.
Mass: at most 130 g.
| OPERATING ENVIRONMENTAL CONDITIONS | |
| Vibration loads: | |
| frequency, Hz | 10-200 |
| acceleration, m/s² | 59 |
| frequency, Hz | 200-600 |
| acceleration, m/s² | 20 |
| Multiple impacts with acceleration, m/s² | 343 |
| Single impacts with acceleration, m/s² | 1,470 |
| Ambient temperature, °C | -10 to +55 |
| Relative Humidity at up to +25 S°, % | 98 |
|
BASIC DATA Electrical Parameters |
|
| Heater voltage, V | 6.3 |
| Heater current, A | 4.7-5.6 |
| Mutual conductance iat anode voltage 400 V grid 2 voiiage 300 V grid 1 voltage change ±l kV anode current 375 mA), mA/V | 20-32 |
| Gain coefficient (at anode voltage 400 V grid 2 voltages 250 and 300 V, anode current 375 mA) | 8-16 |
| Negative bias voltage (at anode voltage 400 V grid 2 voltage 300 V, anode current 375 mA/V (absolute value), at most | 60 |
| Output power (at frequency 250 MHz, anode voltage 900 V grid 2 voltage 300 V, anode current at most 310 mA, grid 2 current 33 mA, anode dissipation, at most 150 W), W, at least | 120 |
| Warm up time (at anode voltage 400 V grid 2 voltage 300 V, anode current 375 mA), s, at most | 120 |
| Output power over 1000 h of service (at 50-60 MHz, anode voltage 1.000 V grid 2 voltage 250 V grid 1 voltage -40 V, drive voltage 52 V grid 2 current at most 40 mA, anode dissipation at most 1 50 W grid 1 dissipation at most 2 W), W, at least | 105 |
| Interelectrode capacitance, pF: | |
| input, at most | 34-44 |
| output, at most | 7-10 |
| transfer, at most | 0.1 |
| Limit Operating Values | |
| Heater voltage, V | 5.7-6.9 |
| Anode voltage, V | 1,500 |
| Grid 2 voltage, V | 400 |
| Negative grid 1 voltage, V (absolute value) | 200 |
| Cathode current (DC component), mA | 340 |
| Cathode current under conditions of class B, mA (peak value) | 1,000 |
| Dissipation, W: | |
| anode | 150 |
| grid 2 | 10 |
| grid 1 | 2 |
| Operating frequency, MHz | 500 |
| Temperature at seals, anode and stem, °C | 150 |
1.jpg)

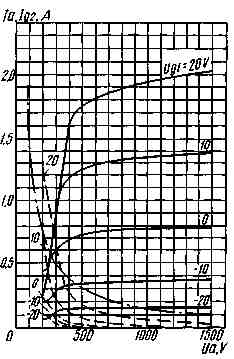

Averaged Characteristic Curves:
Uf = 6.3 V; Ug2 = 0.3 kV;
_____ anode;
- - - grid 2-anode;
— • — Pa max
2.jpg)

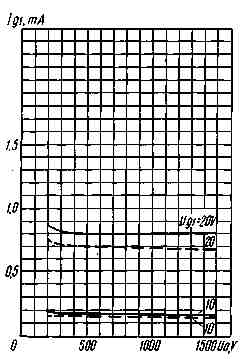

Averaged Grid-Anode Characteristic Curves:
Uf = 6.3V;
_____ Ug2 (0.25kV);
- - - Ug2 (0.3kV)
3.jpg)

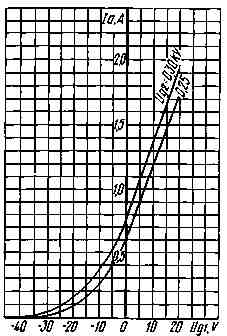

Averaged Anode-Grid Characteristic Curves:
Uf = 6.3V; Ua = 1kV
