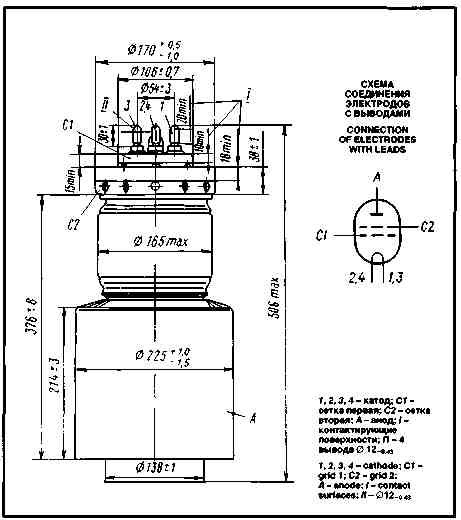

GU-44B

TETRODE

The GU-44B tetrode is used for RF power amplification in short-wave transmitters

GENERAL
Cathode: directly heated, carbonized thoriated tungsten
Envelope: glass-to-metal
Cooling: forced air
Height: at most 506 mm
Diameter: at most 225 mm
Mass: at most 33 kg

OPERATING ENVIRONMENTAL CONDITONS
Ambient temperature, °C	-10 to +55
Relative humidity at up to 25 °C, %	98

BASIC DATA Electrical Parameters
Filament voltage, V	12.6
Filament current, A	170-200
Mutual conductance (at anode voltage 1.5 kV, grid 2 voltage 1 kV, anode currents 8 and 12A), mA/V	55-75
Gain coefficient (grid 1 -grid 2) (at anode voltage 1.5 kV, grid 2 voltages 1 and 1.4 kV, anode current 8 A)	4.2-6.2
Interelectrode capacitance, pF:
input, at most	300
output, at most	55
transfer, at most	4
Negative cutoff voltage (at anode voltage 10 kV, grid 2 voltage 2 kV, anode current 0.5 A), V, at most	700

Limit Operating Values
Filament voltage, V	12-13
Anode voltage (DC), kV	12
Grid 1 voltage (negative), kV	1.5
Grid 2 voltage (DC), kV	2
Filament starting current, A	300
Dissipation, kW:
anode	30
grid 2	3.2
grid 1	1.2
Operating frequency (at output power 70 kW), MHz	32
Anode temperature, °C	250
Temperature at envelope, stem and seals, °C	150

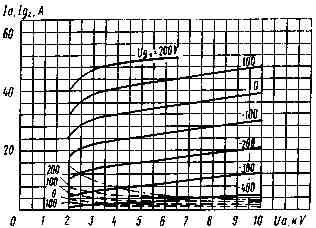

Averaged Characteristic Curves:
U_f = 12.6V; U_g2 = 1.5kV;
_____ anode;
_ _ _ grid 2-anode;
— • — P_{a max}

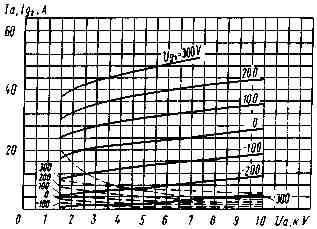

Averaged Characteristic Curves:
U_a = 12.6V; U_g2 = 2kV;
_____ anode;
_ _ _ grid 2-anode;
— • — P_{a max}

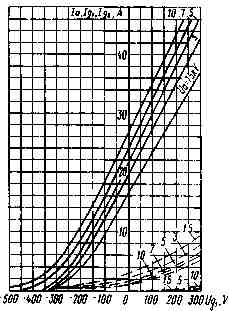

Averaged Characteristic Curves:
U_f = 12.6V; U_g2 = 1.5kV;
_____ anode-grid;
— . — grid1;
_ _ _ grid 2

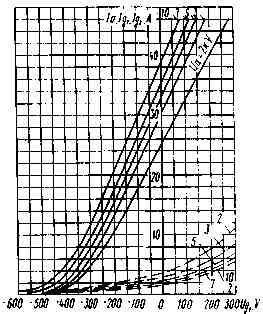

Averaged Characteristic Curves:
U_f = 12.6V; U_g2 = 2kV;
_____ anode-grid;
— . — grid1;
_ _ _ grid 2
