GU-94Ç

TETRODE

The GU-94P tetrode provides linear amplification of single-sideband signals with output power 100 kW at frequencies up to 30 MHz and is designed for stationary use in RF equipment.

GENERAL
Cathode: directly heated, carbonized thoriated tungsten.
Envelope: metal-ceramic.
Cooling: evaporation for anode, forced air for other envelope elements.
Working position: upright with anode up.

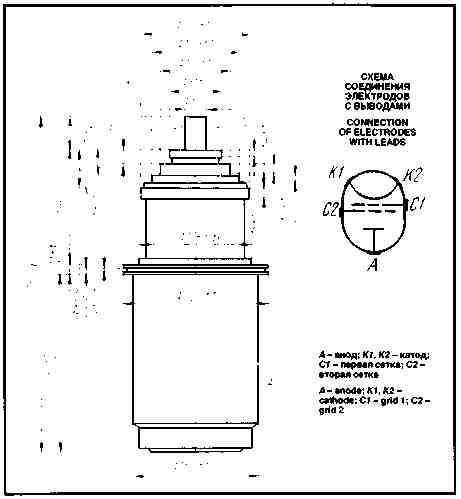

Height: at most 535 mm.
Diameter: at most 221 mm.
Mass: at most 35 kg.

OPERATING ENVIRONMENTAL CONDITIONS
Vibration loads:
frequencies, Hz	1-35
acceleration, m/s²	5
Multiple impacts with acceleration, m/s²	147
Ambient temperature, °C	1-55
Relative humidity at up to 25 °C, %	98

BASIC DATA Electrical Parameters
Filament voltage (AC or DC), V	18
Filament current, A	350-420
Negative cutoff voltage, absolute value (at anode voltage 2 kV, grid 2 voltage 1.5 kV, anode current 0.1 A), V, at most	350
Anode current (at anode voltage 2.5 kV, peak grid 2 voltage 1.5 kV, grid 1 voltage 0), A, at least	38
Mutual conductance (at anode voltage 2 kV, grid 2 voltage 1.5 kV, anode currents 6 and 10 A), mA/V	110-180
Gain coefficient (at anode voltage 2 kV, grid 2 voltages 1.4 and 1.5 kV, anode current 10 A)	6-11
Interelectrode capacitance in a grounded-cathode circuit, pF:
input	550-650
output	60-77
transfer	2.6
Interelectrode capacitance in a grounded-grid circuit, pF:
input	240-300
output	60-77
transfer, at most	0.35

Limit Operating Values
Filament voltage (AC or DC), V	18.5
Anode voltage (DC), kV	15
Grid 2 voltage, kV	1.8
Filament starting current (peak value), A	800
Dissipation, W:
anode	1x105
grid 2	2.5x10³
grid 1	500
Operating fequency, MHz	30
Envelope temperature (except for anode) at the hottest point, °C	175

Averaged Emission Characteristic Curves

Averaged-Grid Characteristic Curves:
U_f = 18V; U_g2 = 1,500V

Averaged Anode-Grid Characteristic Curves:
U_f = 18V; U_g2 = 1,500V
